We will continuously develop products
to provide eco-friendly corrugated cardboard boxes.

Our corrugated cardboard business is supplying eco-friendly corrugated cardbox boxes with great buffer capacity and contents preservability. In particular, we are continuously developing products with diverse shape and function to meet consumers’ characteristics.

Products
Manufacturing Process

Manufacturing of Corrugated Cardboard

Product Structure

Corrugated cardboard consists of linerboard plate and wavy corrugated medium paper. Three plies of top, middle, and bottom are laminated together. Each layer’s raw material mix and density decide the type of paper.

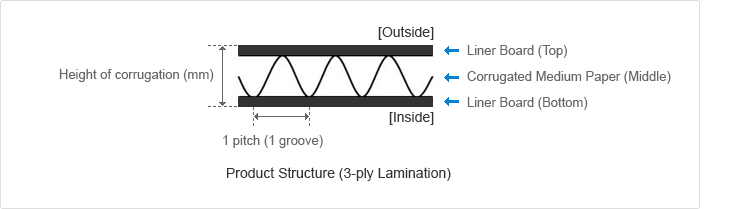

Structure of corrugated cardboard box product (3-ply lamination) Liner board (top), corrugated medium paper (middle), and liner board (bottom) are laminated in 3 layers. The height of the lamination is called the height of corrugation (mm). One corrugation is 1 pitch per interval of corrugated medium paper.

Types of Corrugation of Corrugated Cardboard

Types of Corrugation of Corrugated Cardboard
Types of corrugation	Amount of corrugation / 30cm	Height of corrugation
A	34±2	4.6~4.8mm
B	50±2	2.5~2.7mm
C	40±2	3.5~3.7mm
D	92±2	1.4~1.6mm
E	94±2	1.4~1.6mm
F	125±2	1.1~1.2mm
G	246	0.5mm

Single-faced corrugated cardboard, Single wall corrugated cardboard, Double wall corrugated cardboard

Facilities

Corrugator
Flexo Printing M/C
Rotary Die Cutter
